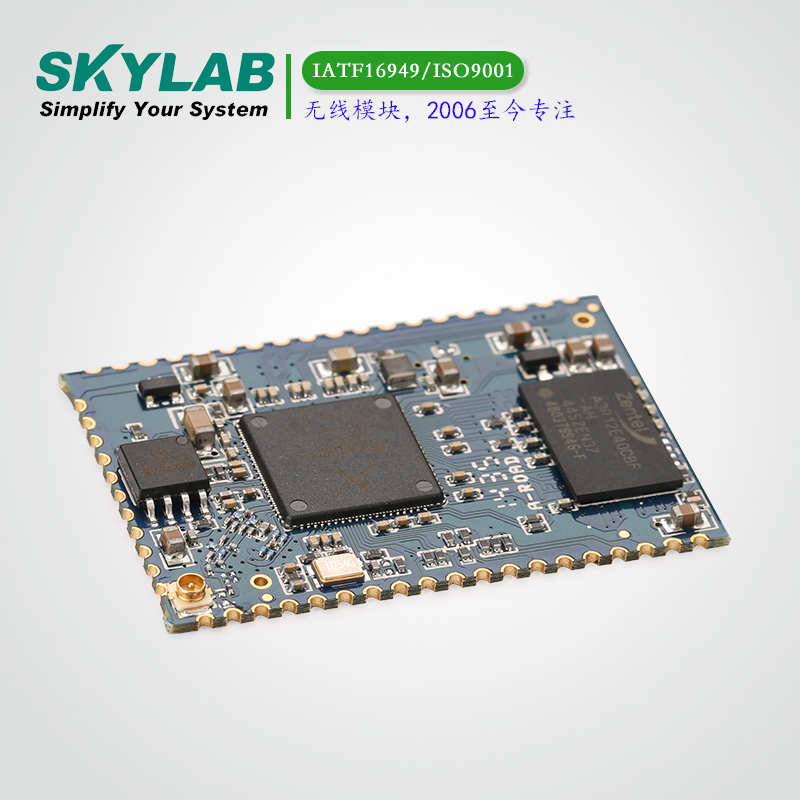

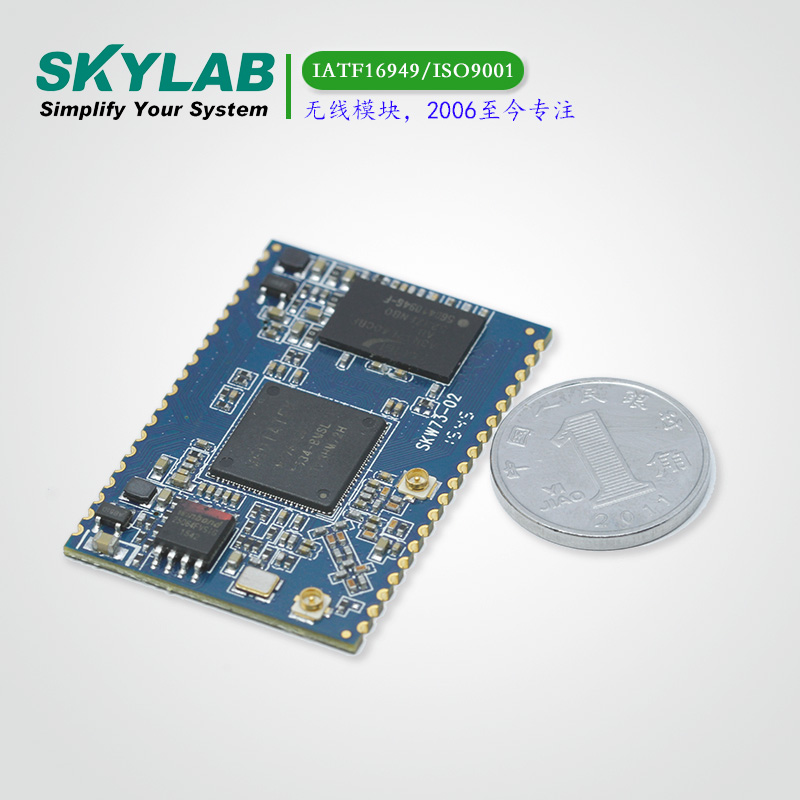

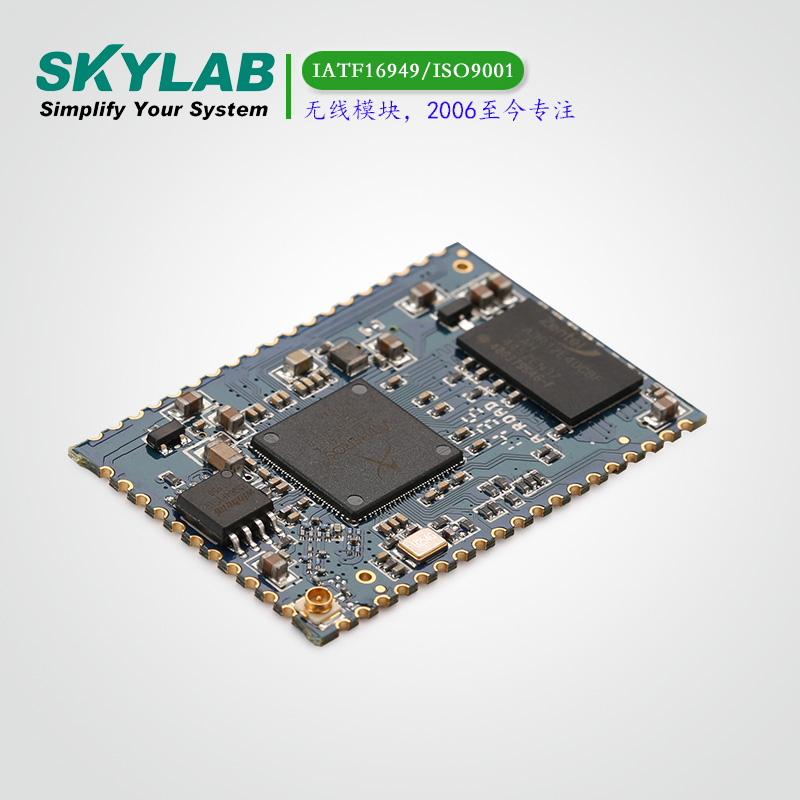

SKW72是一个1T1R,符合802.11n Wi-Fi标准的无线模块。它内部集成了1个24K的MIPS处理器,1个高速以太网接口, 1个USB2.0接口,1个 I2S接口和多样的低速IOs。该模块需要一个3.3V供电电源,适用于低功耗,低成本,高度集成AP的电子设备。
SKW72的主芯片是Atheros的AR9331。它在802.11n Wi-Fi标准下,20MHz的频宽能达到72.2Mbps的速率, 40MHZ的频宽能达到150Mbps的速率。该模块支持AP,client和中继模式以及串口WiFi。SKW72为SMD贴片封装。
AP WIFI
UART无线网络
中继器WIFI
IP电视
IP DVD(互联网视频点播播放器)
机顶盒
家庭网关
游戏机
录像机
Hardware Features |
Model | SKW72 |
Antenna Type | IPEX connector or PCB pin |
Chipset solution | AR9331 |
Voltage | 3.3.0V+/-10% |
Dimentions(W×D) | 40.5mm*27.5mm |
Wireless Features |
Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency Range | 2.400GHz---2.4835GHz |
Data Rates | IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps |
IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps |
IEEE 802.11n : 65Mbps @ HT20 |
150Mbps @ HT40 |
Receiver Sensitivity | 135M: -65dBm@10% PER(MCS7) |
72.2M: -70dBm@10% PER(MCS7) |
54M: -75dBm@10% PER |
11M: -86dBm@ 8% PER |
Modulation Technique | 802.11 Legacy b/g |
DSSS (DBPSK, DQPSK, CCK) |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
Wireless Security | WPA/WPA2, WEP, TKIP, and AES |
Transmit Power | IEEE 802.11n: 14dBm @HT40 MCS7 |
12dBm@HT20 MCS7 |
IEEE 802.11g: 15dBm |
IEEE 802.11b: 18dBm |
Work Mode | Ad-Hoc / Infrastructure mode/AP/Repeater/UART |
Others |
Certification | CE, FCC, RoHS |
Power Consumption@25°C | Status | Average/mA |
Continuous Tx | 350 |
Power Saving | 70 |
Note:The maximum current consumption would be impacted by radiation environment and the driver mechanism |
Environment | Operating Temperature: -20℃~70℃ |
Storage Temperature: -40℃~125℃ |
Operating Humidity: 10%~90% non-condensing |
Storage Humidity: 5%~90% non-condensing |
◆符合IEEE 802.11b/g/n 1x1WLAN
◆DDR2内存高达512Mb
◆高达64Mb的闪存
◆4个LAN端口和1个WAN端口
◆高速UART
◆USB 2.0主机设备模式支持
◆支持AP/客户端/中继器模式
◆支持UART到WiFi透明
◆安全:WEP 64/128、WPA、WPA2、TKIP、AES、WAPI
◆RoHS符合环保要求
◆FCC,CE认证
◆40.5(长)x27.5(宽)x2.9(高)毫米小尺寸
